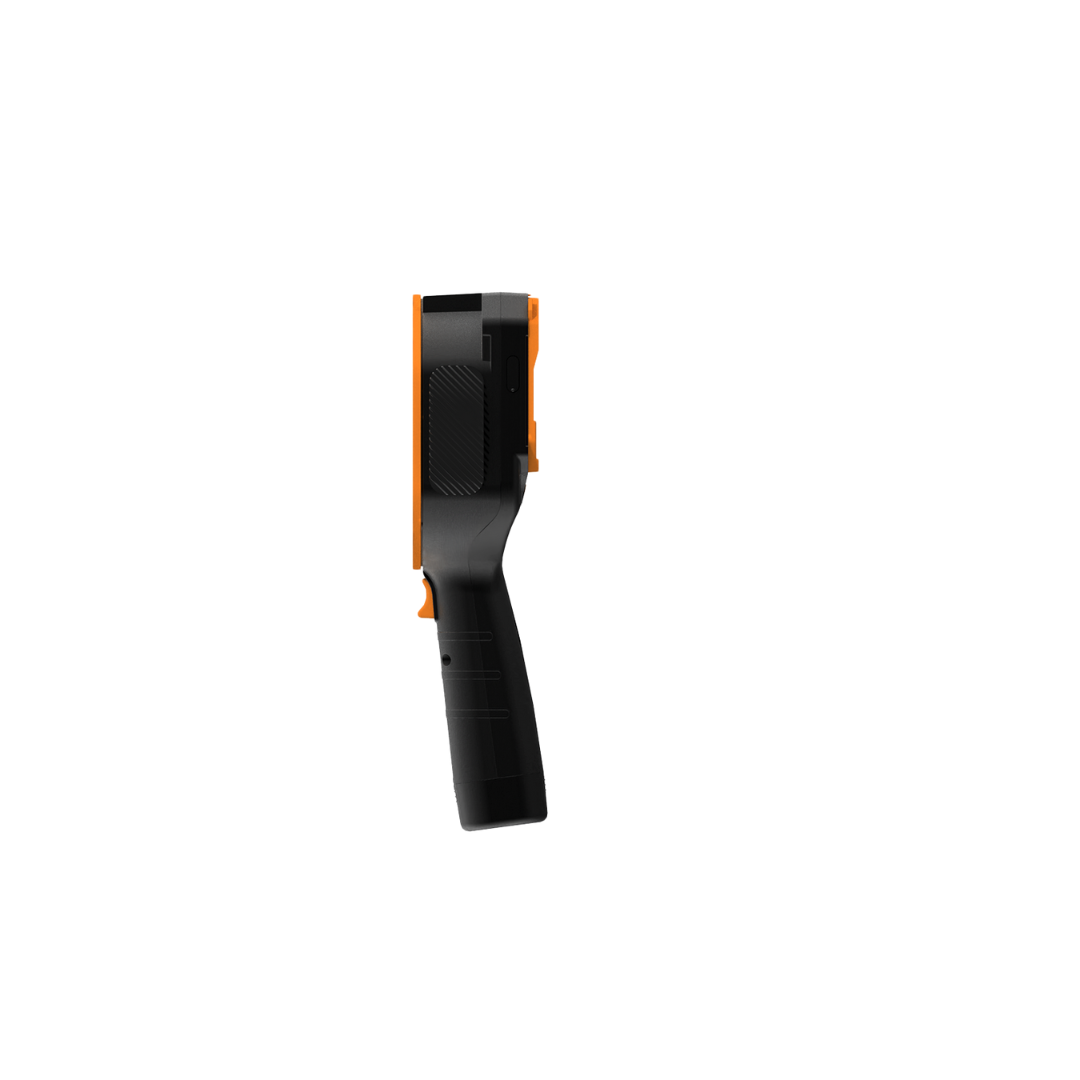

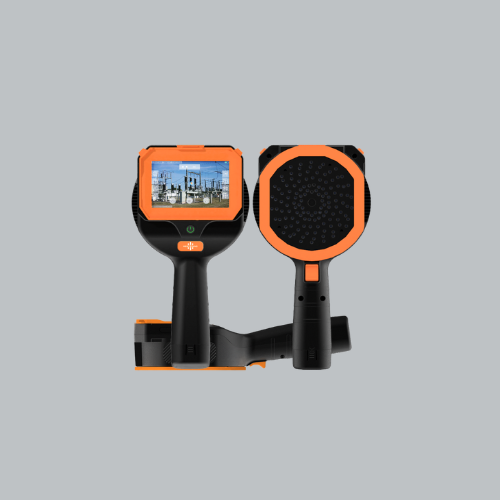

The Hertzinno HZ-HA-171p is a new generation acoustic camera engineered for continuous industrial inspections, focusing on partial discharge, pressurized gas leaks, and mechanical fault detection. Equipped with an array of 128 low-noise MEMS microphones and an ultra-bright 1000 nits screen, it ensures precise diagnostics even in challenging outdoor environments. Designed for maximum field efficiency, the device features a replaceable battery architecture that delivers up to 7 hours of uninterrupted operation, making it the standard tool for extensive facility patrols.
Unlike specialized intrinsically safe models with sealed power units, the HZ-HA-171p is built for extensive, multi-shift field operations. It features an optimized power management system that provides 7 hours of operating time on a single charge. The hot-swappable, replaceable battery design allows maintenance teams to continuously inspect vast power grids or extensive manufacturing plants without experiencing equipment downtime.
Precision Acoustic Array & AI Quantification

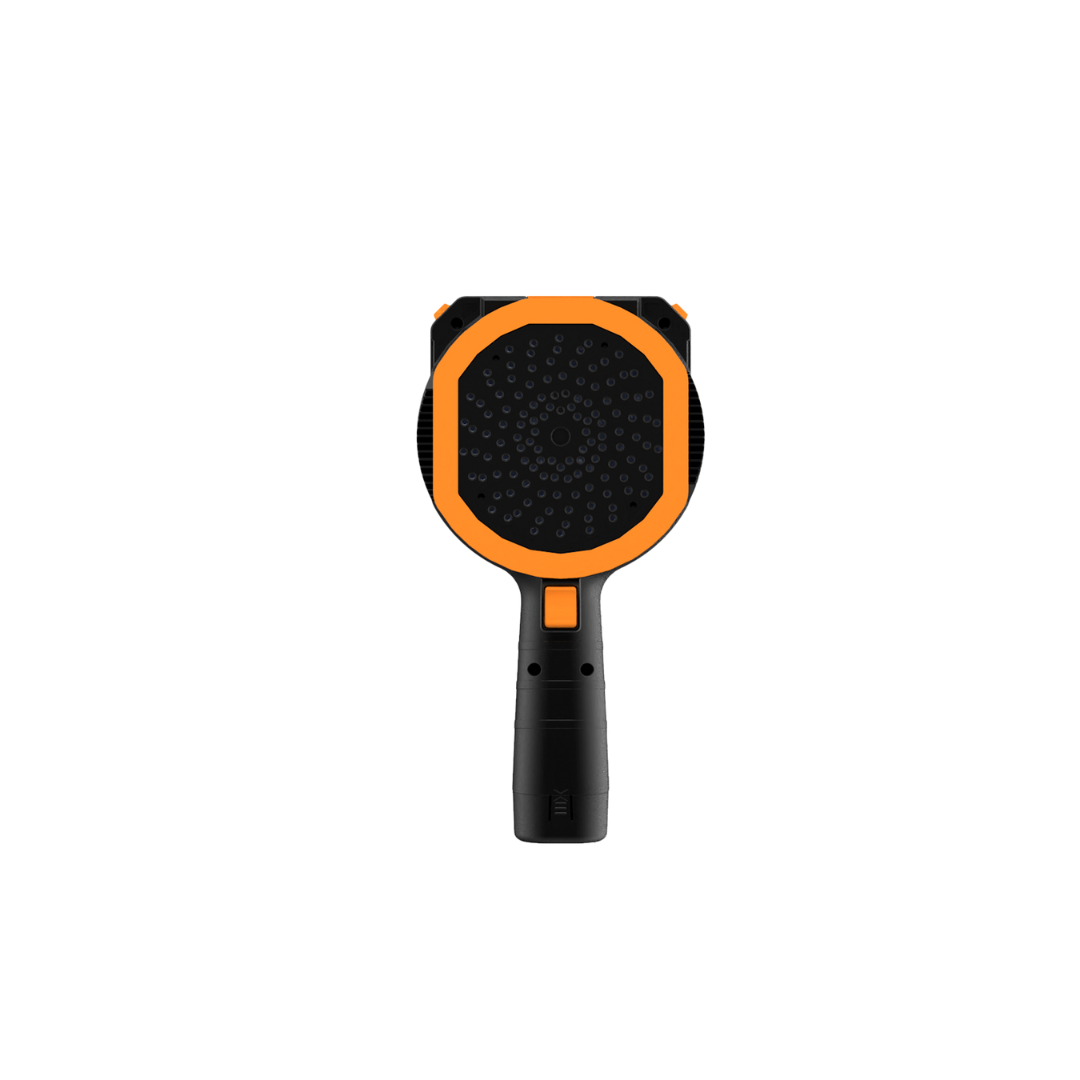

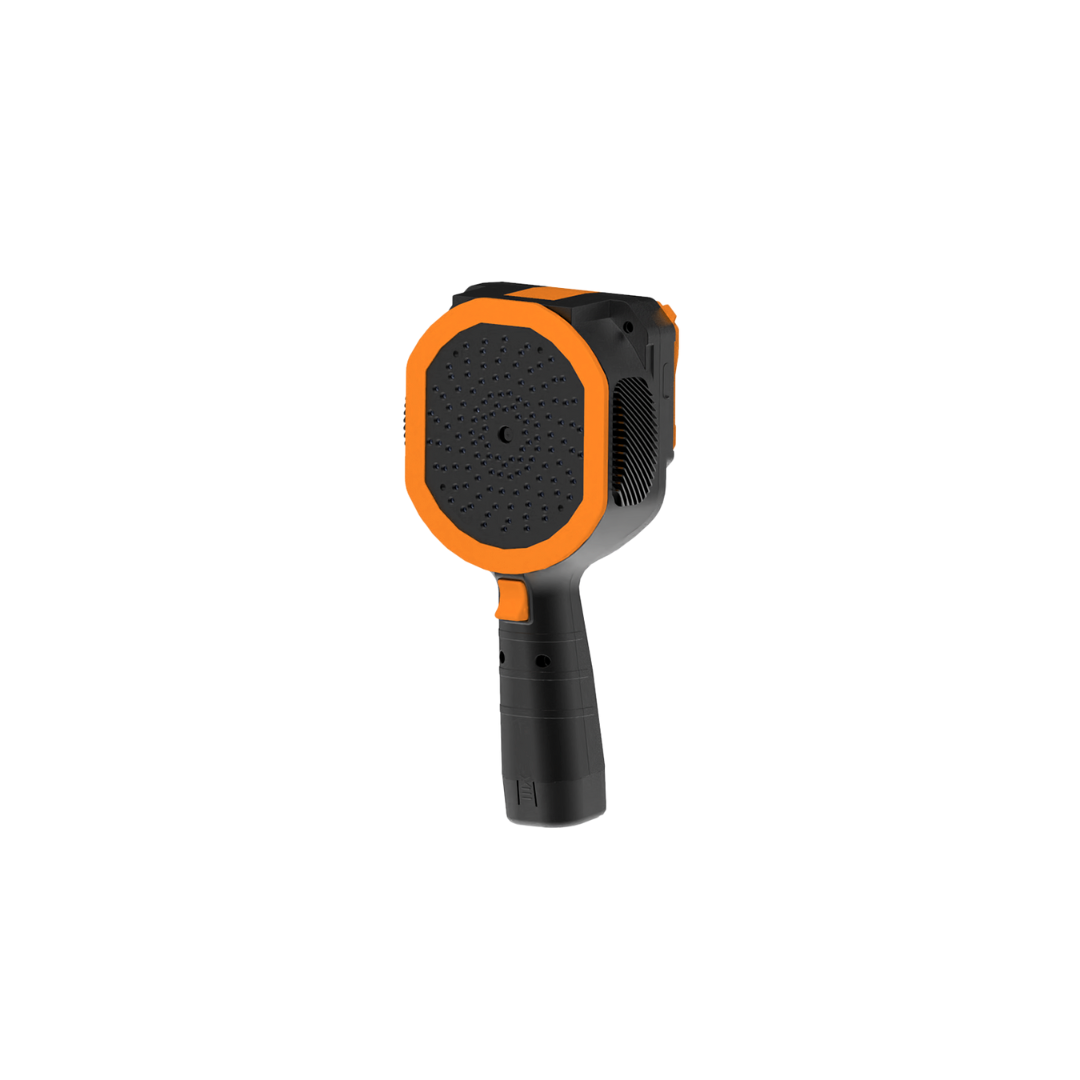

The system integrates 128 low-noise MEMS microphones, supporting both audible and ultrasonic frequencies to detect steady-state or highly transient sound sources. Driven by on-board AI software, the HZ-HA-171p operates entirely on the edge. Under leak mode, it automatically quantifies the industrial gas leak rate and calculates the associated financial cost. Under PD mode, it performs severity assessments and intelligent type classification (Corona, Floating, Surface, and Noise) for high-voltage anomalies.
Outdoor-Optimized Hardware Design

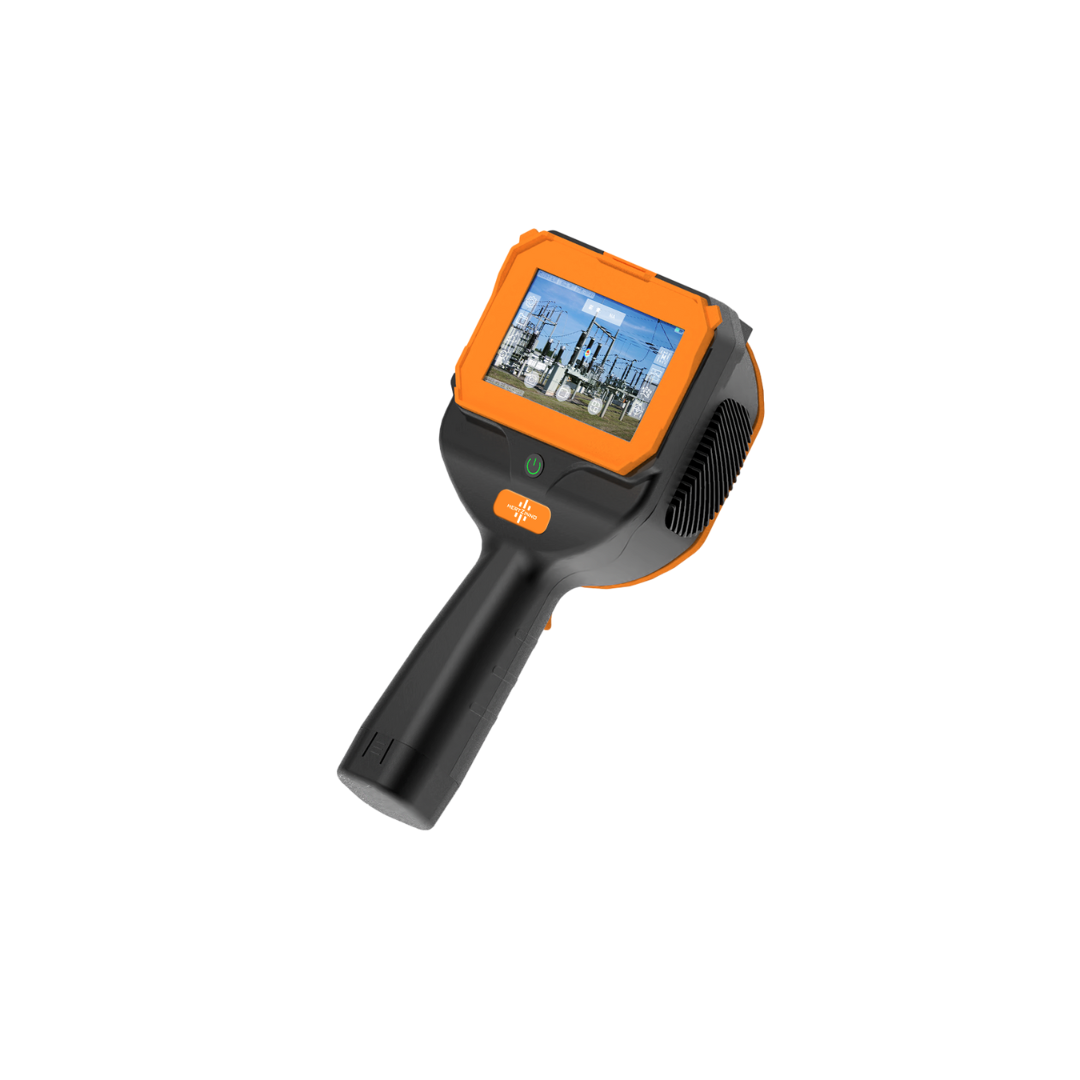

To accommodate complex field environments, the HZ-HA-171p is equipped with an industry-leading 1000 nits, 1280*720 display, ensuring clear visibility of acoustic maps even under direct sunlight. Combined with an IP54 protection rating and an operating distance spanning from 0.3 meters to 200 meters, it delivers reliable, high-resolution (13MP) visual and acoustic data across all standard industrial scenarios.
