Acoustic Imaging Cameras for Gas Leak, PD & Fault Detection

Handheld and online acoustic cameras for gas leak localization, partial discharge inspection, methane verification, thermal confirmation and robotic acoustic monitoring.

Acoustic Camera Products

Handheld Acoustic Camera

Fixed & Online Acoustic Camera

HA3T Handheld Acoustic & Thermal Camera

HA3LX Acoustic & Methane Laser Camera

HZ-HA-170P,HERTZINNO,HZ-HA-170p ATEX Acoustic Camera | 138 Microphones | PD & Leak Detection

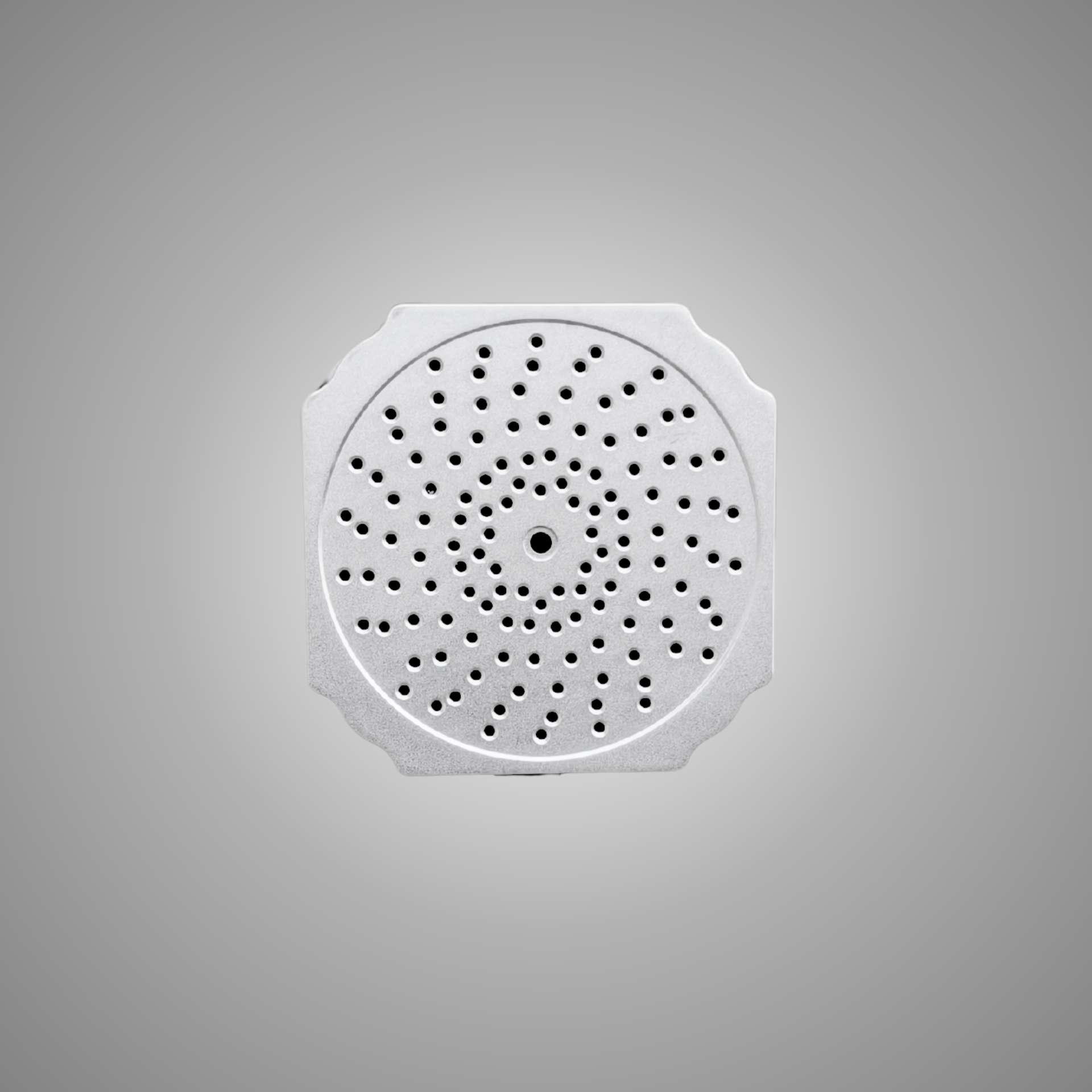

HZ-FA-371 Fixed Acoustic Imaging Camera

HZ-FA-371T Fixed Acoustic & Thermal Imaging Camera

HZ-PA-3EX Acoustic & Laser Explosion-proof PTZ Camera

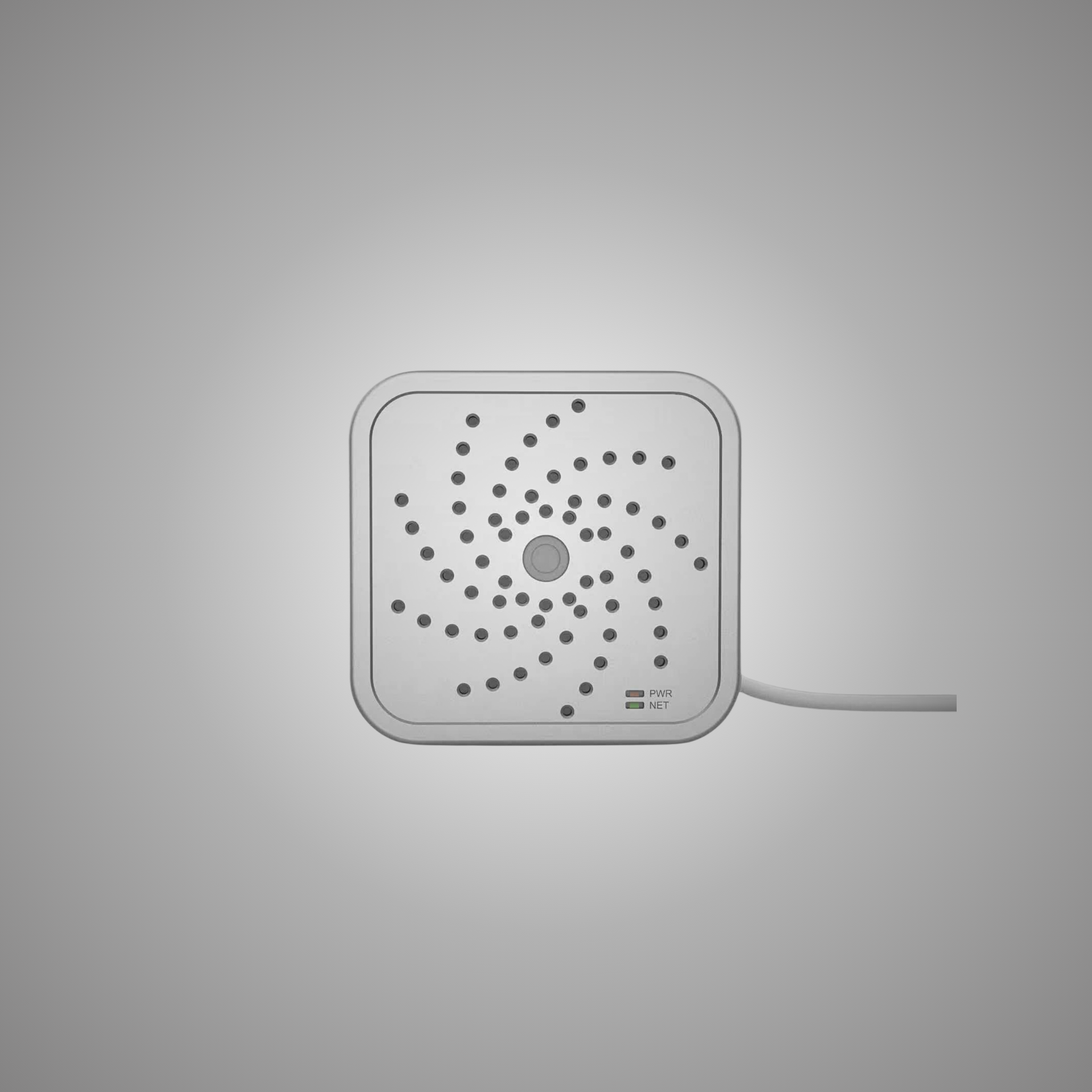

HZ-FA-36 Miniature Acoustic Imaging Camera

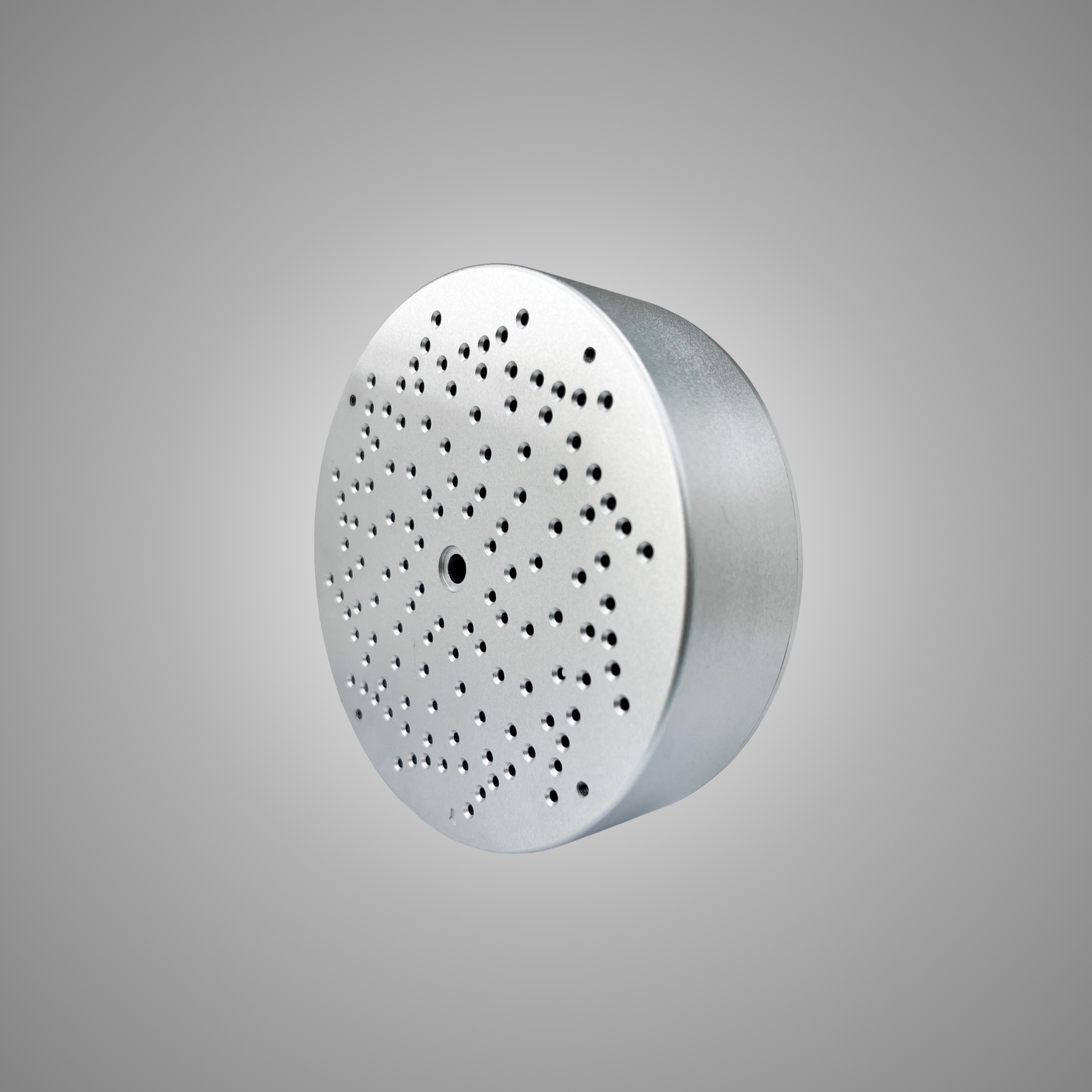

HZ-ACM-20Ex Explosion-proof Acoustic Camera Module

HZ-ACM-10,HERTZINNO,Integrated Acoustic Camera Modules & Bespoke OEM Solutions | Hertzinno

Choose the right acoustic camera for your inspection task

HERTZINNO acoustic imaging cameras cover handheld inspection, fixed online monitoring, methane verification, thermal confirmation and hazardous-area deployment. Start with the asset, the target signal and the working environment.

Field Inspection

For engineers who need to walk through substations, plants or compressor stations and locate leaks, partial discharge or abnormal sound sources on site.

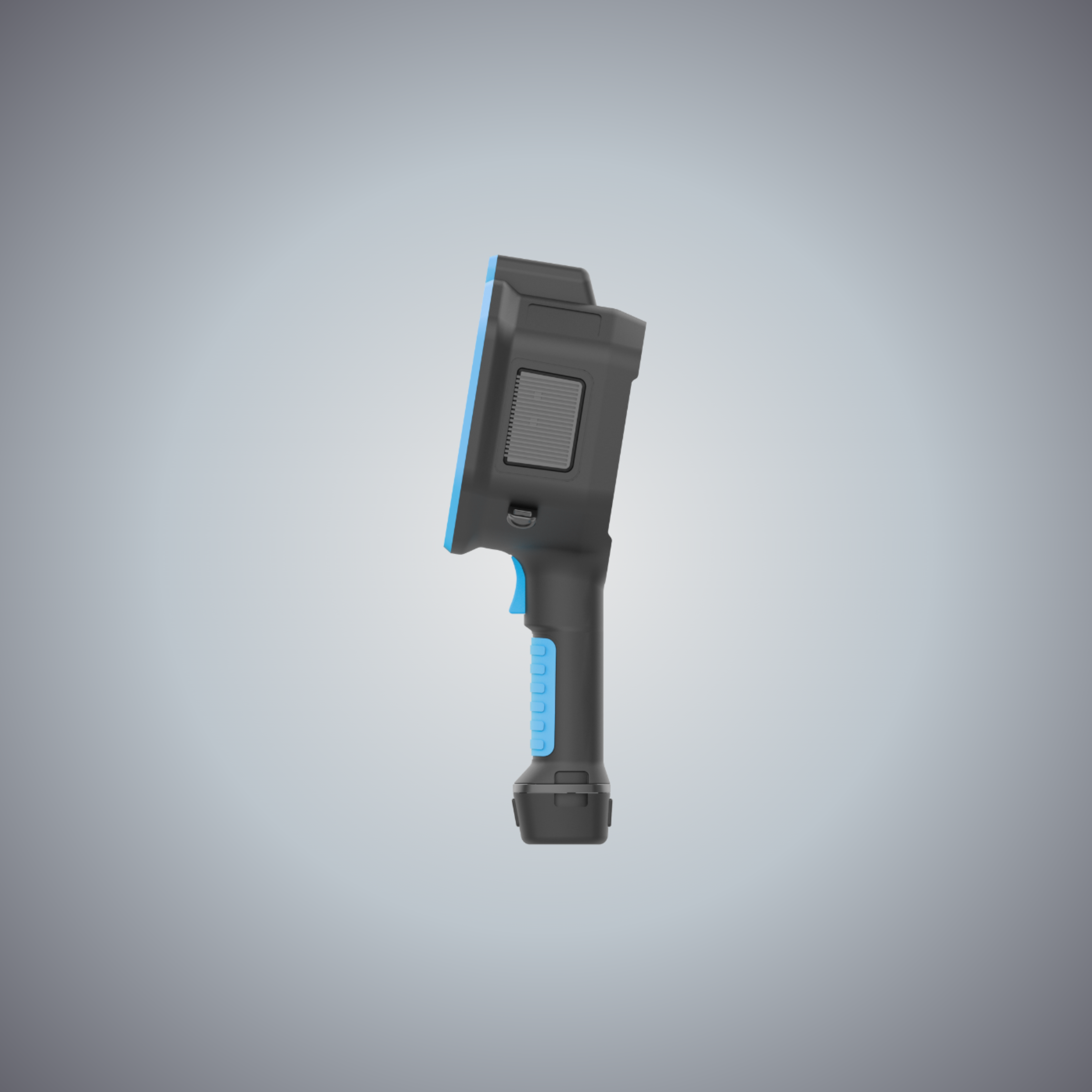

HA3 HA3T HA3A

Methane Verification

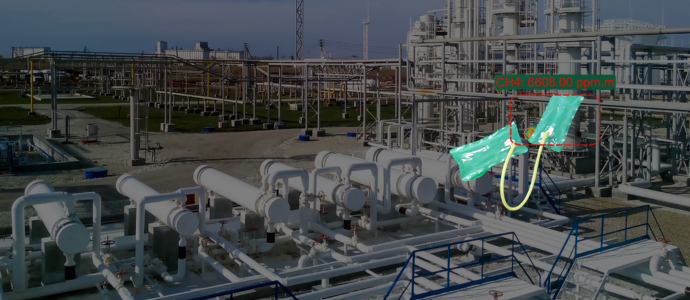

For oil, gas and chemical sites where inspectors need both acoustic leak localization and non-contact methane concentration measurement.

HA3LX HZ-PA-3EX

Acoustic + Thermal

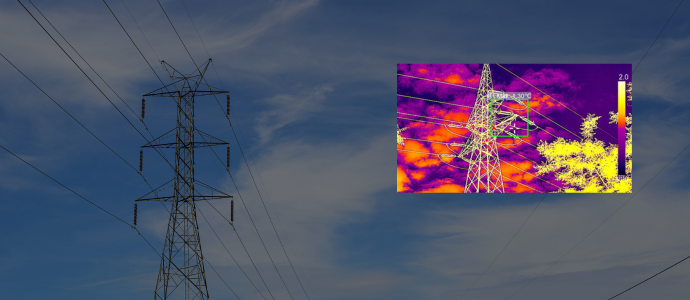

For power, data center and industrial sites that need to verify both sound sources and thermal risks such as overheating, hot spots or abnormal equipment temperature.

HA3T HA3TX HZ-FA-371T

Fixed Online Monitoring

For unmanned or high-risk areas that require 24/7 acoustic monitoring, remote alarm, robotic deployment or hazardous-area fixed installation.

HZ-FA-371 HZ-FA-371T HZ-ACM

Application Matrix

One product category, multiple industrial use cases.

Acoustic cameras are used where faults create sound before they become visible. They help engineers turn ultrasonic emissions into visual evidence for inspection, maintenance and safety decisions.

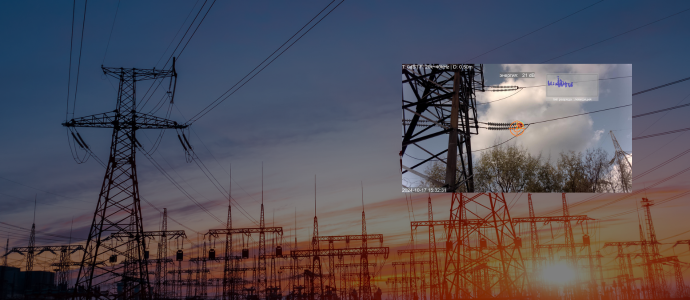

Power & Grid Locate partial discharge, corona, tracking and abnormal sound sources in substations, switchgear and transmission assets.

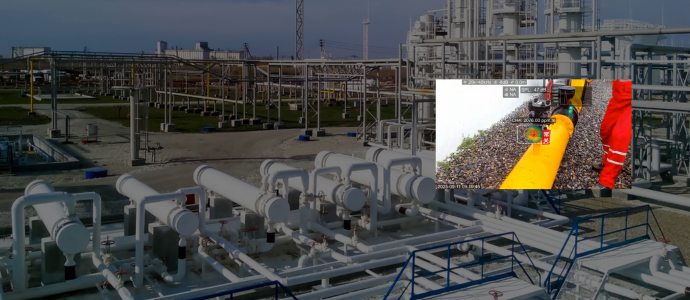

Oil, Gas & Chemical Locate pressurized gas leaks, verify methane and support LDAR inspection in hazardous industrial environments.

Data Centers Inspect electrical rooms, switchgear, cooling equipment and cable routes for discharge, leaks and abnormal acoustic patterns.

Manufacturing Find compressed air leaks, mechanical noise and abnormal product sound sources in production and maintenance areas.

Mining & Heavy Industry Inspect conveyors, motors, fans, pumps and heavy equipment in high-noise and harsh operating environments.

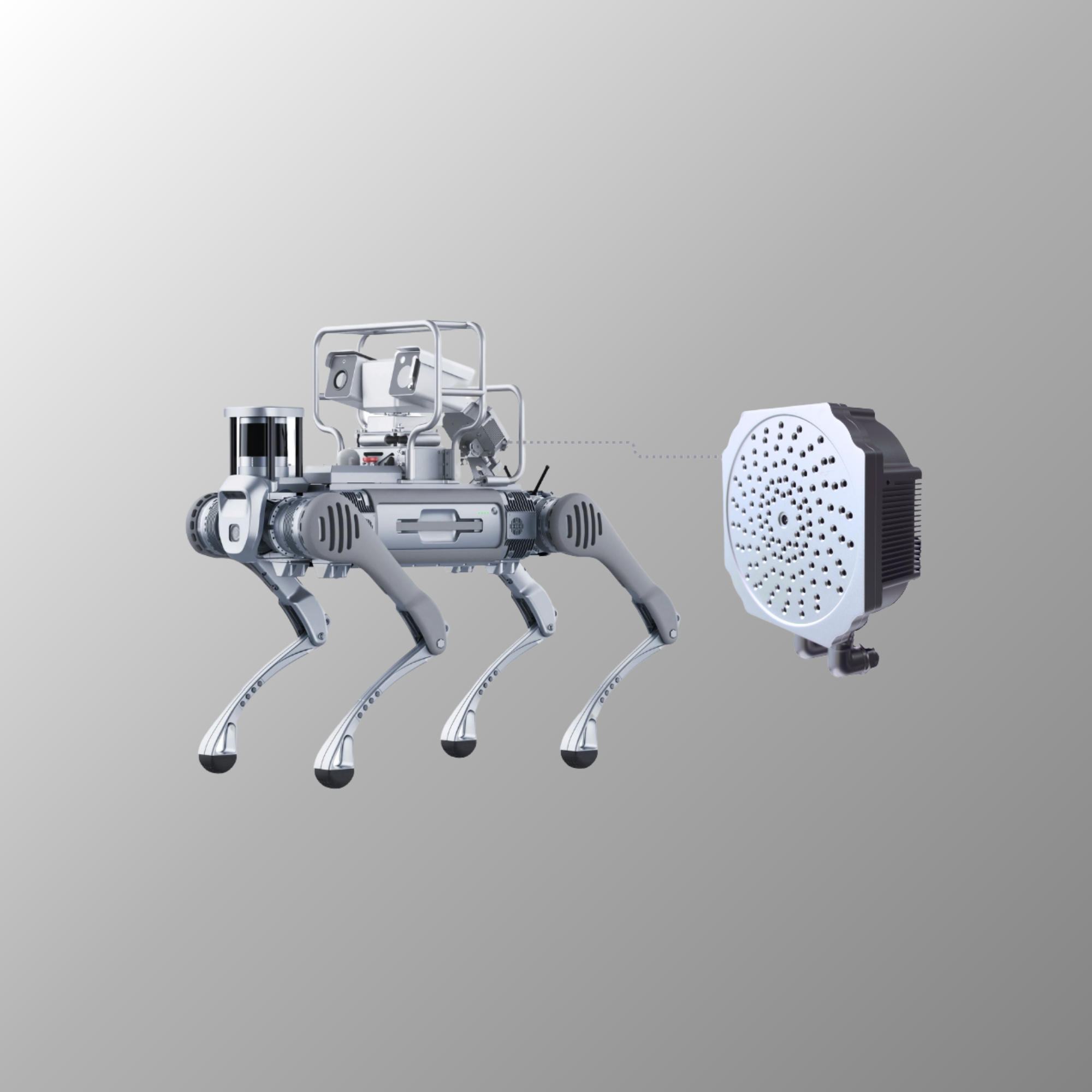

Robotic Inspection Integrate acoustic modules with robots, fixed platforms or unmanned patrol systems for remote inspection workflows.

Handheld Acoustic Cameras | 144-Channel PD & Gas Leak Detectors | Hertzinno

HA3LX: Handheld Acoustic & Methane Laser Camera

Integrating acoustic imaging with Tunable Diode Laser Absorption Spectroscopy (TDLAS) for complex environments.

Core Sensors: 144 Low-noise MEMS Microphones and a Methane Laser Sensor.
Methane Quantification: Non-contact real-time measurement of methane concentration with a static detection limit of 5ppm*m and up to 30m detecting distance.
Dual-Detection Approach: Verifies and quantifies the presence of methane at the leak point once localized by the acoustic camera.
Safety Compliance: ATEX Anti-explosion certified (Ex ib IIIC T130°C Db / Ex ib IIC T4 Gb).

HA3T: Handheld Acoustic & Thermal Camera

Combining high-resolution acoustic localization with infrared thermal imaging for multi-dimensional defect analysis.

Core Sensors: 144 Low-noise MEMS Microphones paired with a 640x512 Infrared lens.
Thermal Capabilities: Spectral range of 8~14μm (LWIR) with NETD ≤40mK, measuring temperatures from -20°C to 150°C and 100°C to 550°C.
Advanced PD Analysis: Intelligent analysis of partial discharge types combined with real-time sound source localization.
Spatial Precision: Achieves spatial resolution of ≤1cm error at 1m distance under 40kHz.

On-Device Diagnostics & UI

High-Definition Interface

Features a 5-inch touch screen (1920*1080P) displaying 13MP optical camera images and supporting up to 4K photo resolution.

Real-Time Analytics

Supports one-click analysis, one-click forwarding, and the real-time generation of analysis reports directly on the device.

Data Management

Comprehensive file annotation using text, voice, photos, and tags. Export capabilities via Wi-Fi, Bluetooth, or USB Type-C.

Technical Specifications

Specification	HA3LX (Methane Laser Model)	HA3T (Thermal Model)
Microphones	144 Digital MEMS Microphones	144 Digital MEMS Microphones
Frequency Bandwidth	2kHz - 150kHz	2kHz - 150kHz
Operating Distance	0.3m - 200m	0.3m - 200m
Optical Camera	13MP, 72°±3° FOV	13MP, 72°±3° FOV
Display	1920*1080P, 5-inch, Touch Screen	5-inch, Touch Screen, 1920*1080
Specialized Sensor	TDLAS Methane Sensor (0 to 50,000 ppm*m)	640*512 Uncooled Vanadium Oxide Infrared Lens
Laser Distance Measurement	0.1-35m	0.1-35m(±1mm)
Protection Level	IP54, ATEX Anti-explosion	IP54
Weight	Less Than 1.2kg	Less than 1.2kg
Battery & Charging	Li-ion, 2.5 H to 90% PD Fast Charging	Li-Ion, up to 7 hours, PD Fast Charging

FAQ

Acoustic Imaging Camera FAQ

Common questions about acoustic cameras for gas leak detection, partial discharge inspection, methane verification, thermal imaging and fixed online monitoring.

What is an acoustic imaging camera?

An acoustic imaging camera uses a microphone array to locate sound sources and display them as a visual sound map. It helps engineers find invisible faults such as gas leaks, partial discharge and abnormal mechanical noise.

What can HERTZINNO acoustic cameras detect?

HERTZINNO acoustic cameras can help detect pressurized gas leaks, compressed air leaks, partial discharge, corona, tracking, mechanical noise, abnormal equipment sound and methane-related leak risks depending on the selected model.

How do I choose between HA3, HA3T and HA3LX?

Choose HA3 for general acoustic inspection, HA3T when thermal verification is also required, and HA3LX when methane verification is needed in oil, gas or chemical environments.

When should I use a fixed online acoustic camera?

Fixed online acoustic cameras are suitable for unmanned substations, compressor stations, data center electrical rooms, hazardous industrial zones and other sites that need continuous monitoring instead of periodic manual inspection.

Can acoustic cameras work in noisy industrial environments?

Yes. Acoustic cameras analyze frequency features and directional sound sources rather than relying only on audible sound. Models and settings should be selected based on background noise, target frequency range and inspection distance.

Which industries use acoustic imaging cameras?

Common industries include power grids, substations, oil and gas facilities, chemical plants, data centers, manufacturing lines, mining operations, hydrogen systems and critical infrastructure sites.

Key Applications & Demos

Partial Discharge Detection

Precisely locate PD sources (±15cm) from 200m away. Automatically classifies discharge types (Corona, Surface, Internal) and assesses severity using PRPD mapping to prevent failures.

Gas Leak & Cost Analysis

Detects leaks in Compressed Air, Hydrogen, SF6, and Natural Gas (20-100 kHz). Built-in AI estimates leakage volume and calculates annual energy loss costs in real-time.

Mechanical Fault Diagnosis

Visualize sound maps to identify bearing damage, blade imbalance, and misalignment in motors and fans. Pinpoints the exact location of faults to shorten troubleshooting time.
