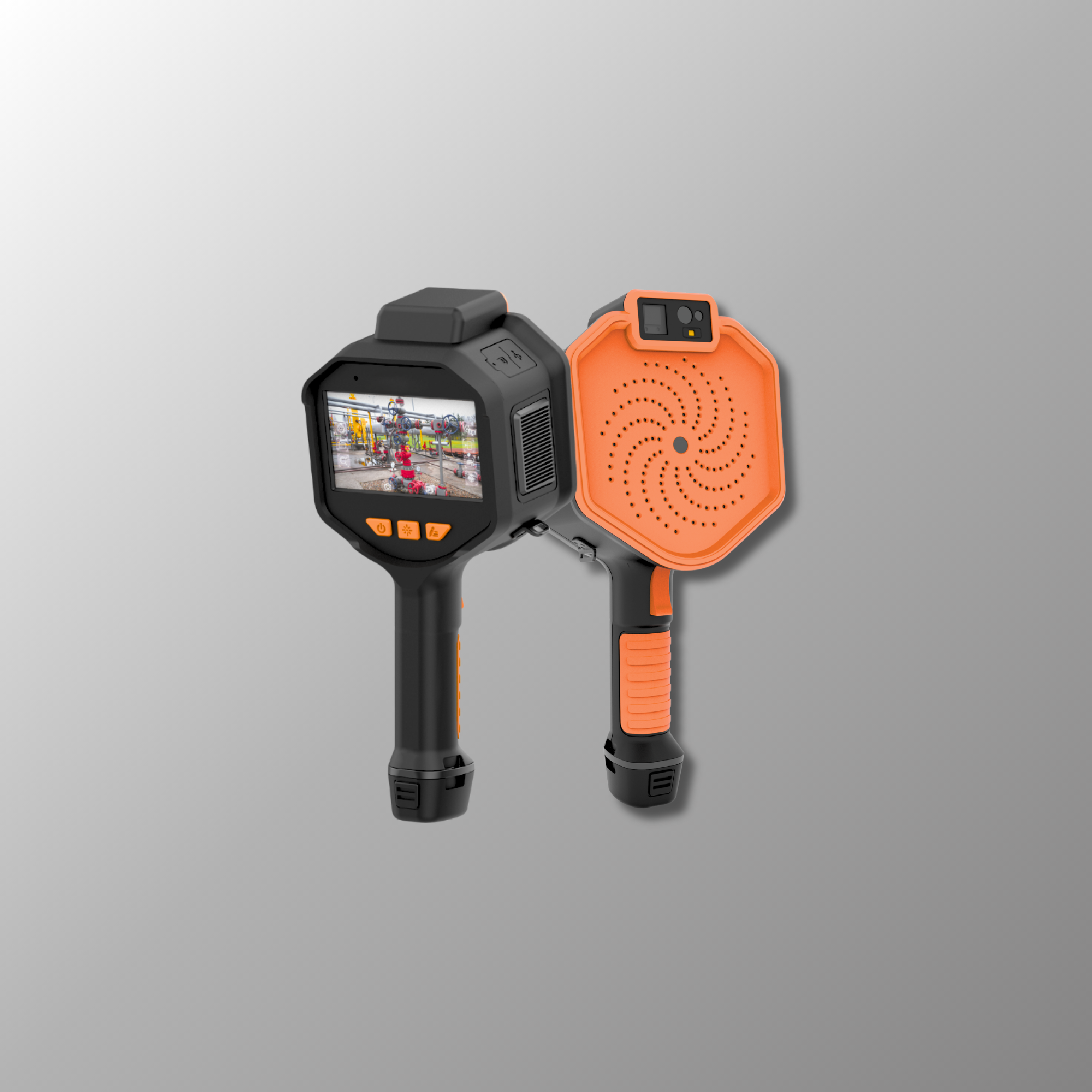

  • HA3LX Acoustic & Methane Laser Camera,HERTZINNO,HA3LX Acoustic & Methane Laser Camera for Gas Leak Detection | HERTZINNO
  • HA3LX Acoustic & Methane Laser Camera,HERTZINNO,HA3LX Acoustic & Methane Laser Camera for Gas Leak Detection | HERTZINNO

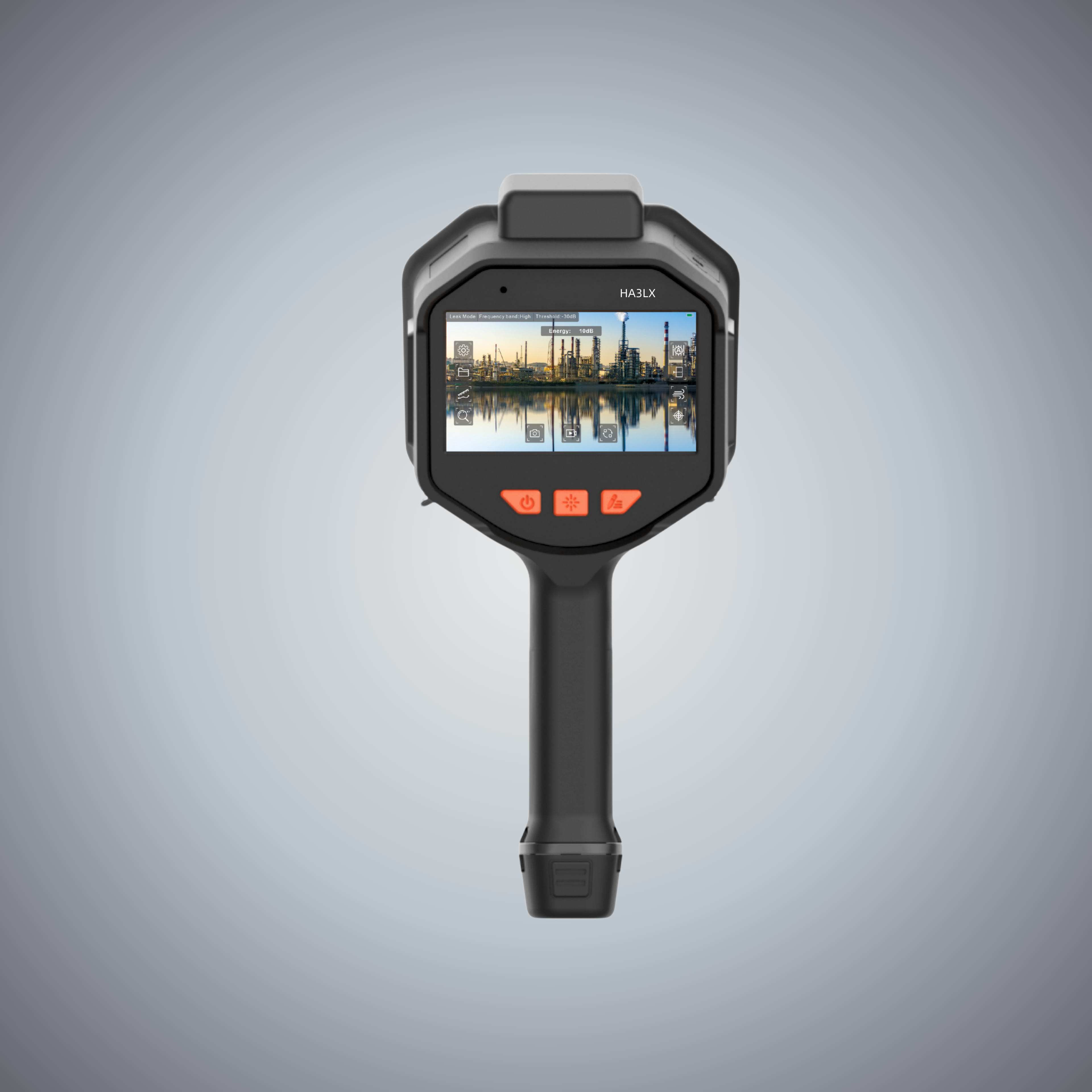

  • Hertzinno acoustic camera with TDLAS for Methane gas leak_HA3LX_main picture

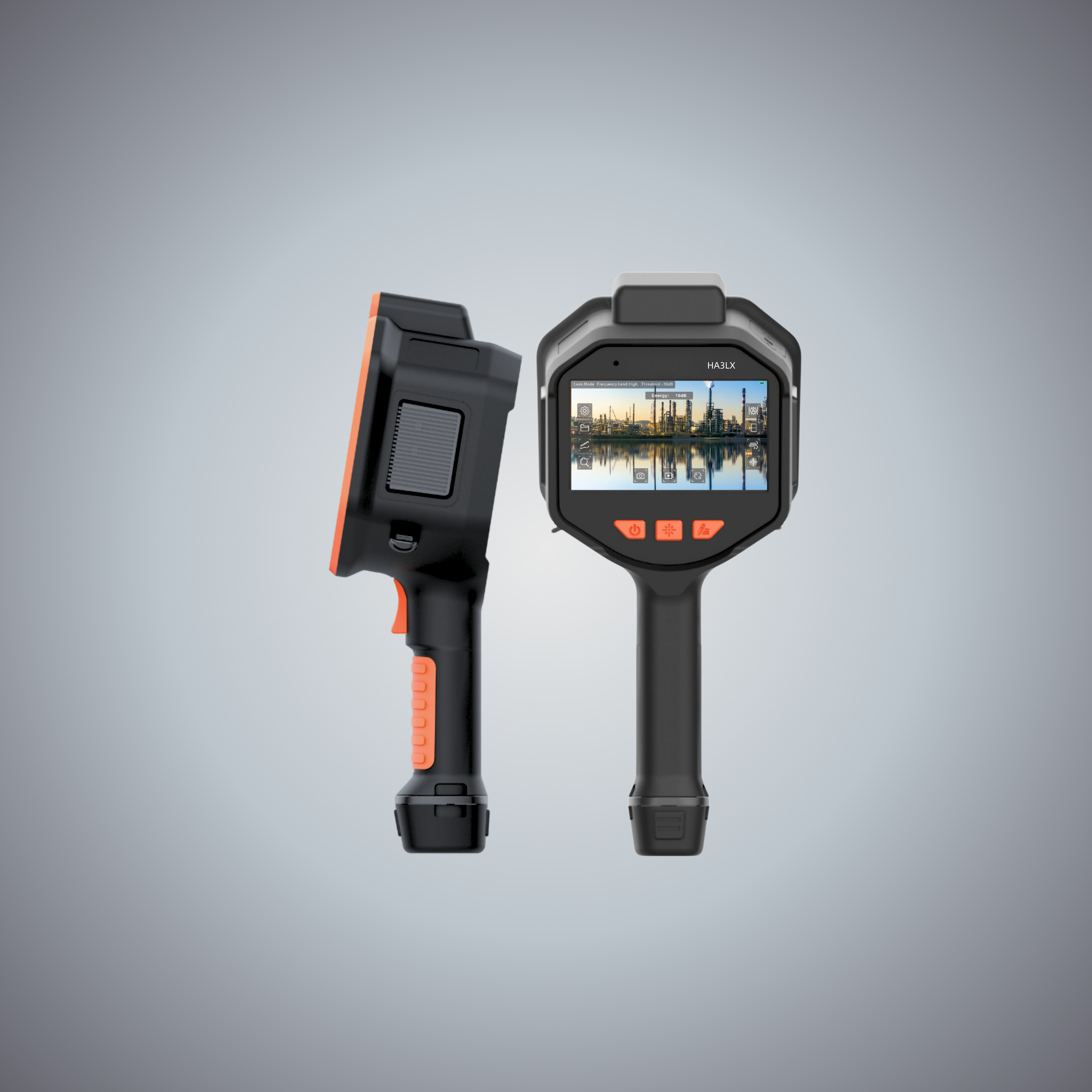

  • Acoustic camera with ATEX certificates

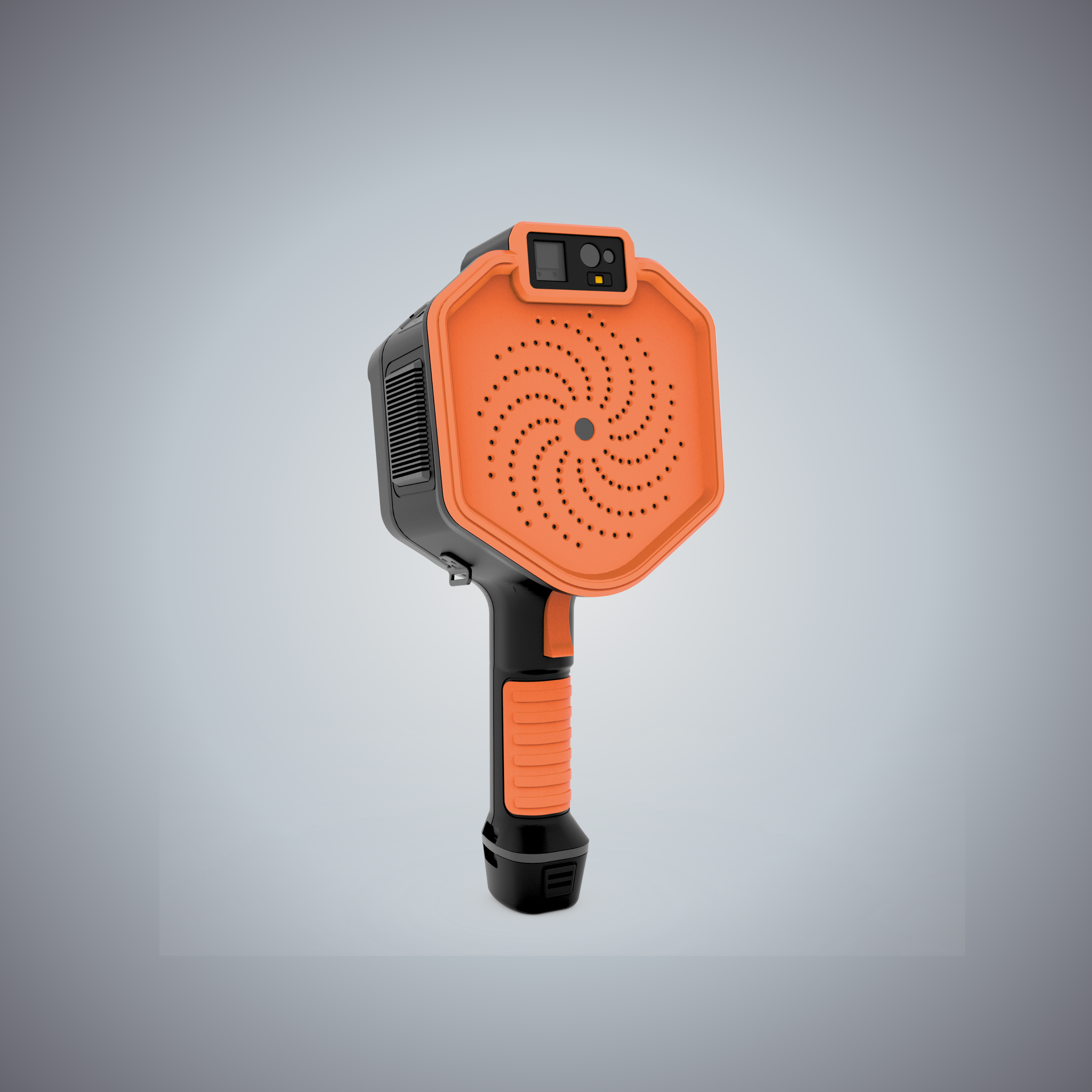

  • The Laser lens and microphone array of HA3LX acoustic cameras
  • HA3LX Acoustic & Methane Laser Camera,HERTZINNO,HA3LX Acoustic & Methane Laser Camera for Gas Leak Detection | HERTZINNO
  • HA3LX Acoustic & Methane Laser Camera,HERTZINNO,HA3LX Acoustic & Methane Laser Camera for Gas Leak Detection | HERTZINNO
  • Hertzinno acoustic camera with TDLAS for Methane gas leak_HA3LX_main picture
  • Acoustic camera with ATEX certificates
  • The Laser lens and microphone array of HA3LX acoustic cameras

HA3LX Acoustic & Methane Laser Camera

HA3LX is a handheld acoustic and methane laser camera that combines 144 digital MEMS microphones with TDLAS methane detection. It helps inspectors locate gas leak sources acoustically and verify CH₄ concentration in real time for oil, gas, chemical, LNG, hydrogen-blended gas and LDAR applications.
Acoustic Sensor
144 digital MEMS microphones
Frequency Bandwidth
2kHz ~ 150kHz
Laser Module
TDLAS (0 to 50,000 ppm*m)
Space resolution
≤1cm@1m, 40kHz
Optical Camera
13MP
Anti-explosion
ATEX
GET A QUOTE
  • HA3LX Acoustic & Methane Laser Camera,HERTZINNO,HA3LX Acoustic & Methane Laser Camera for Gas Leak Detection | HERTZINNO
  • HA3LX Acoustic & Methane Laser Camera,HERTZINNO,HA3LX Acoustic & Methane Laser Camera for Gas Leak Detection | HERTZINNO
  • Hertzinno acoustic camera with TDLAS for Methane gas leak_HA3LX_main picture
  • Acoustic camera with ATEX certificates
  • The Laser lens and microphone array of HA3LX acoustic cameras

HA3 handheld acoustic & TDLAS camera for field inspection.

HA3LX is a handheld acoustic and TDLAS methane camera designed for industrial methane leak inspection. It combines a 144-channel MEMS microphone array with a methane laser sensor to help inspectors locate leak sources acoustically and verify CH₄ concentration in real time. HA3LX is suitable for oil and gas facilities, chemical plants, LNG sites, compressor stations, valve stations, pipelines and LDAR workflows.

144

Digital MEMS microphones for high-density acoustic imaging.

2kHz–150kHz

Wide frequency bandwidth for audible and ultrasonic inspection.

0.3–210m

Operating distance for close-range and long-distance inspection.

<1.2kg

Lightweight handheld design for field maintenance teams.

What HA3LX helps engineers detect

HA3LX is a handheld acoustic and TDLAS methane camera designed for industrial methane leak inspection. It combines a 144-channel MEMS microphone array with a methane laser sensor to help inspectors locate leak sources acoustically and verify CH₄ concentration in real time.
Gas Leak located by Acoustic Camera
CH4 concentration measured by HA3LX with TDLAS
LDAR & Fugitive Emission Inspection with HA3LX
Acoustic Camera for Partial discharge detected in substations
Gas Leak located by Acoustic Camera

Gas Leak Localization

Locate pressurized gas and compressed air leaks by visualizing ultrasonic leak emissions on screen. Verify CH₄ concentration in real time using non-contact Tunable Diode Laser Absorption Spectroscopy.
CH4 concentration measured by HA3LX with TDLAS

TDLAS Methane Verification

Verify CH₄ concentration in real time using non-contact Tunable Diode Laser Absorption Spectroscopy.
LDAR & Fugitive Emission Inspection with HA3LX

LDAR & Fugitive Emission Inspection

Support methane leak detection, leak documentation and emission reduction workflows for oil, gas and chemical sites.
Acoustic Camera for Partial discharge detected in substations

Multi-purpose Acoustic Inspection

Use the same acoustic imaging platform for partial discharge detection and abnormal mechanical noise inspection when required.
Applications

Where HA3LX is used

HA3LX is suitable for field inspection tasks where engineers need to locate acoustic leak sources and verify methane concentration in one workflow.

Oil & Gas

Facility Leak Inspection

Locate acoustic leak sources and verify methane concentration around valves, flanges, compressors, tanks and process equipment.

Chemical

Chemical Plant Safety

Support gas leak inspection and acoustic fault localization in complex industrial environments with methane verification capability.

LNG & Gas

LNG & Gas Handling Sites

Inspect LNG terminals, gas preparation rooms, compressor stations and high-pressure gas handling areas for methane-related risks.

Pipeline

Pipeline & Valve Stations

Detect ultrasonic leak sources and verify CH₄ concentration around pipeline equipment, valve stations and gas transmission assets.

LDAR

LDAR Inspection

Support leak detection and repair workflows with acoustic localization, methane concentration evidence and inspection documentation.

Product Family

Acoustic Imaging Cameras

Compare HA3LX with HA3, HA3T and fixed online acoustic cameras for acoustic, thermal, methane and online monitoring workflows.

From leak sound to methane verification.

HA3LX combines acoustic imaging with TDLAS methane laser detection. The microphone array first visualizes the ultrasonic sound source from a suspected leak. The methane laser sensor then verifies CH₄ concentration at the target area, helping inspectors confirm whether the acoustic source is methane-related and document the inspection result.
HOW IT WORKS

01

Sound Capture
144 digital MEMS microphones capture audible and ultrasonic sound signals from the target area.

02

Acoustic Localization
Beamforming algorithms locate the suspected leak source and display it as an acoustic heatmap.

03

Methane Verification
The TDLAS methane laser sensor measures CH₄ concentration in real time without direct contact.

04

Inspection Output
Engineers can capture images, videos, annotations and inspection records for maintenance reporting.
Technical Specifications

Core HA3LX specifications

Key parameters from the HA3LX product specification for acoustic imaging, TDLAS methane detection, gas leak localization, CH₄ concentration verification, storage, power and field operation.

Product Type
Handheld acoustic and TDLAS methane camera
Microphone Array
144 digital MEMS microphones
Methane Sensor
TDLAS methane laser sensor
Methane Measurement Range
0–50,000 ppm·m
Frequency Bandwidth
2 kHz – 150 kHz
Localization Accuracy
±1°; space resolution ≤1 cm @ 1 m, 40 kHz
Operating Distance
0.3 m – 210 m
Gas Leak Detection Rate
>0.049 L/min @120 kPa from 8 m; >0.0032 L/min from 2.5 m; >0.0044 L/min from 6 m
Detection Applications
Methane leak detection, gas leakage localization, CH₄ concentration verification, LDAR inspection, partial discharge detection and mechanical noise detection
Optical Camera
13 MP; 72°±3° FOV; 4K photo image resolution
Display
5-inch touch screen, 1920×1080P display resolution
Storage & Data
128 GB storage; USB, Wi-Fi and Bluetooth data transmission
Battery
Two rechargeable Li-ion batteries; 3.5 h normal mode, 7 h standby mode
Protection & Environment
IP54; working temperature -20°C to 55°C; humidity 10%–95%, non-condensing
Analysis Software
On-device analysis, PC software and cloud software

Note: Methane sensor details, measurement distance and explosion-proof configuration should be updated according to the official HA3LX datasheet or selected product version.

Download

Choose the right HA3 series model
HA3 is the general handheld acoustic camera. Choose another model when your workflow requires thermal imaging, methane verification or online fixed monitoring.
HERTZINNO

HA3

 Smart Acoustic Camera
Partial Discharge Detection
PRPD Graph with AI
Gas Leak Detection
HA3T acoustic & themral camera

HA3T

 Acoustic and Thermal Lens
Partial Discharge Detection
PRPD Graph with AI
Temperature Measurement
HERTZINNO

FA371T

 Acoustic & Thermal
PD & Gas Leak Detection
7*24 Monitoring
ATEX Proof

FAQ of HA3LX Acoustic Cameras
The first acoustic camera with TDLAS technology for Nature gas leak detection and concentration measurement

What is HA3LX used for?

HA3LX is used for methane leak inspection, gas leak localization, LDAR inspection and acoustic fault detection in oil, gas, chemical, LNG and industrial facilities.

What is the difference between HA3 and HA3LX?

HA3 is designed for general acoustic imaging inspection. HA3LX adds a TDLAS methane laser sensor, allowing inspectors to verify CH₄ concentration after locating a suspected leak source acoustically.

How does HA3LX detect methane?

HA3LX uses Tunable Diode Laser Absorption Spectroscopy to measure methane concentration along the laser path. This enables non-contact methane verification after acoustic leak localization.

Is HA3LX suitable for LDAR inspection?

Yes. HA3LX supports LDAR workflows by combining acoustic leak localization with methane concentration verification and inspection documentation.

Can HA3LX detect non-methane leaks?

Yes, The acoustic imaging function can locate ultrasonic sound generated by pressurized gas leaks, but the TDLAS methane sensor is specifically used for CH₄ verification. For non-methane gases, the acoustic result shows leaks.
