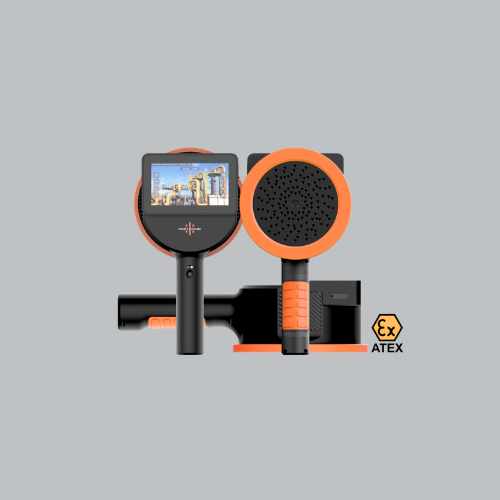

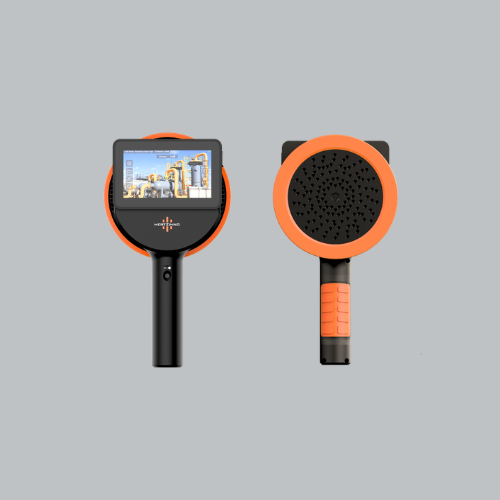

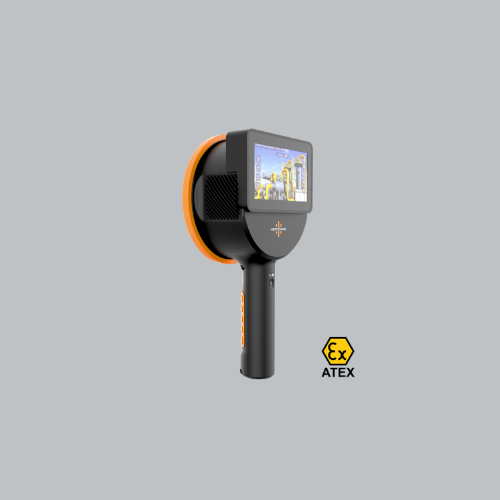

Model |
HZ-HA-170p |
|
Acoustic |
|
|
Microphones |
138 Microphones |
|
Dynamic Range of Camera |
-30dB ~ 120dB |
|
Minimum Imaging Sensitivity |
10kHz：1dB SPL 20kHz：-10dB SPL 30kHz：-6dB SPL 40kHz：3dB SPL 50kHz：6dB SPL 60kHz：20dB SPL |
|
Operating Distance |
0.3m ~ 200m |
|
Horizontal Spatial Resolution |
150mm |
|
Dynamic Range of multiple targets |
0 ~ 18dB |
|
Frequency Bandwidth |
2-100kHz |
|
Microphone Self-diagnosis |
Support |
|
General |
|
|
Camera |
13MP |
|
FOV |
75° |
|
Low Lux |
0.5Lux/F2.0 |
|
Photo Image Resolution |
4K (3840*2160) |
|
Imaging Frame |
30FPS |
|
Digital Zoom |
8x |
|
Video Image Resolution |
1920*1080 @30fps |
|
Storage |
Internal 64GB |
|
Video record |
5min |
|
Display |
720P, 5-inch Capacitive Touch Screen |
|
Wi-Fi |
2.4G/5G |
|
USB |
TYPE-C |
|
Battery Operating Time |
4h |
|
Direct Charging Type |
Type-C |
|
Protection Level |
IP54 |
|
ATEX |
Ex ib IIC T4 Gb Ex ib IIIC T80°C Db |
|
Weight |
Approx. 1100g |
|
Dimension |
314mm* 167mm* 89.9mm |
|
Working Temperature Range |
-20℃ ~ 50 ℃ |
|
Storage Temperature Range |
-30℃ ~ 60 ℃ |
|
Humidity |
10% -95% |
|
Applications |
|
|
Application Scenarios |
Partial discharge/Gas leakage/Vibration |
|
Partial discharge Type Prediction |
Corona/Floating/Surface/Noise |
|
Leaks Rate |
>0.0032L/min from 2.5m |
